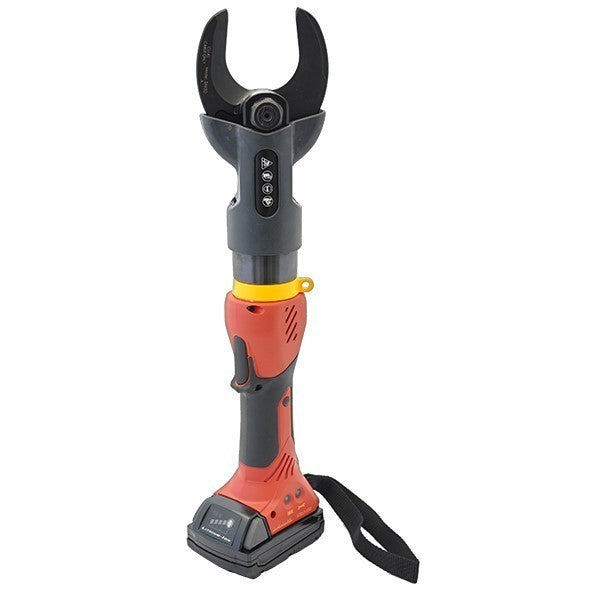

STILO-S50F – Battery-Powered Hydraulic Cable Cutting Tool

Product Description

The STILO-S50F is a compact, battery-powered hydraulic cutting tool designed specifically for cutting fine-stranded and extra-fine-stranded copper and aluminium cables, particularly conductors in Class 5 and Class 6.

With a maximum cutting capacity of 50 mm and a powerful hydraulic drive, the STILO-S50F is designed for fast, precise and reliable cable cutting in professional electrical and industrial applications.

Its open cutting head features 360° continuous rotation, providing excellent accessibility and flexibility when working in confined or difficult-to-reach areas. The tool combines a lightweight, compact design with advanced electronic monitoring and automatic cutting-cycle control.

Key Features

• Maximum cable diameter: 50 mm
• Designed for fine and extra-fine stranded cables
• Suitable for Class 5 and Class 6 conductors
• Suitable for copper (Cu) and aluminium (Al) cables
• Powerful 50 kN cutting force
• Battery-powered hydraulic operation
• 18 V / 2.0 Ah RED Li-Ion battery
• Fast battery charging time: approximately 30 minutes
• Open cutting head with 360° continuous rotation
• Hardened alloy tool-steel blades with a special wear-resistant coating
• Triple axial piston pump for extremely fast cutting cycles
• Electronic control and monitoring of the cutting process
• Automatic blade opening and motor shutdown after completion of the cutting cycle
• Manual opening of the cutting head possible in any position
• Patented quick-return system for rapid head opening
• Multifunction electronics with sleep mode and service monitoring
• Three-colour LED indicator for battery, service and cycle information
• Battery charge indicator integrated into the battery
• USB connectivity for reading cycle and service data
• Software updates via USB
• Easy and service-friendly blade replacement

  Specification	STILO-S50F

  Tool type

  Battery-powered hydraulic cable cutter

  Maximum cutting diameter

  50 mm

  Cutting force

  50 kN

  Application

  Copper and aluminium cables

  Cable type

  Fine-stranded / extra-fine-stranded

  Conductor class

  Class 5 and Class 6

  Battery

  RED Li-Ion, 18 V / 2.0 Ah

  Battery charging time

  Approx. 30 min

  Hydraulic operating pressure

  580 bar / 58 MPa

  Tool dimensions

  468 × 134 × 82 mm

  Weight with battery

  3.2 kg

  Weight without battery

  2.8 kg
